Illustrated Examples

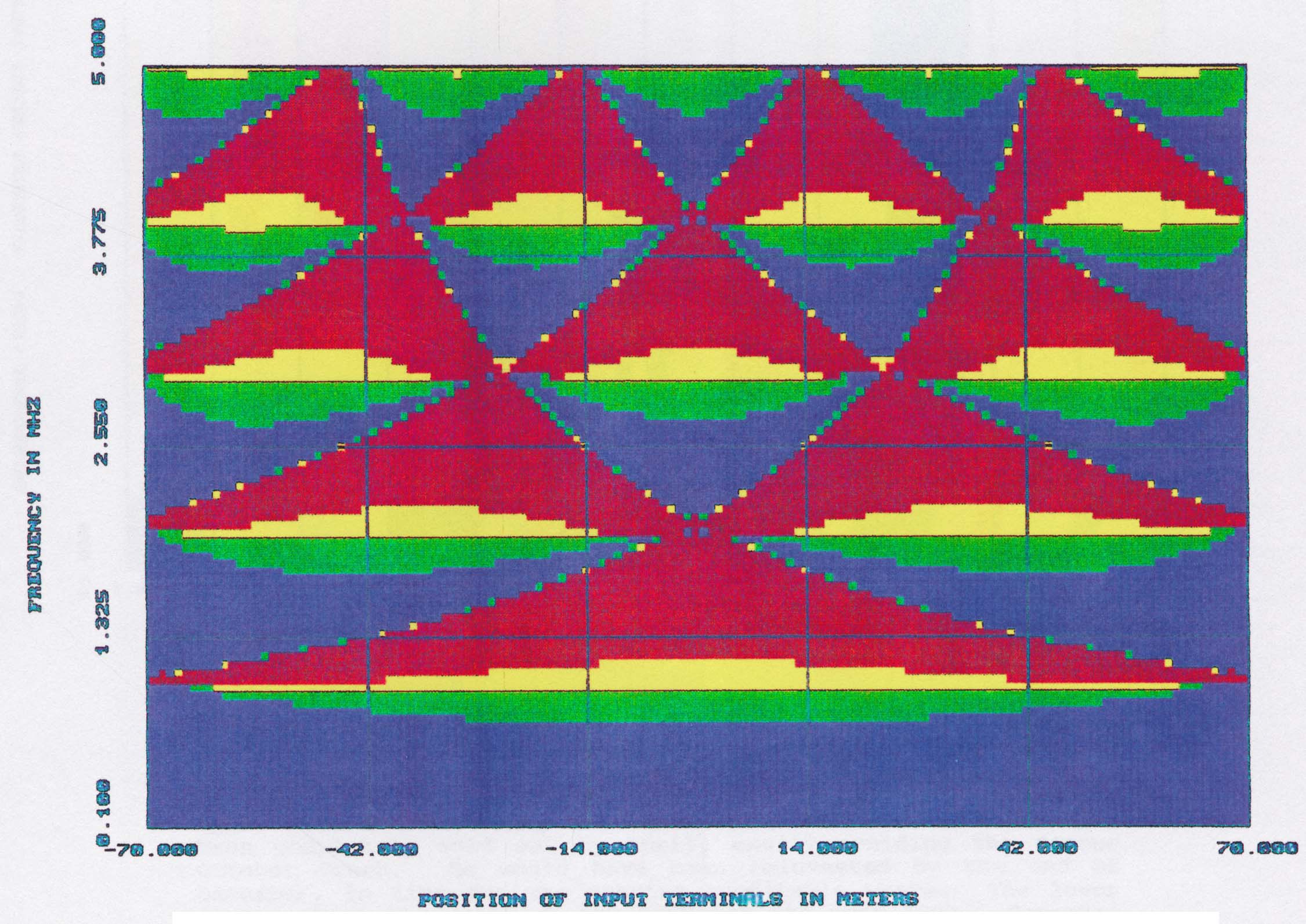

Input resistance of an asymmetric dipole, with radius 0.1 meter and total length 150 meters. Each color corresponds to a different range of resistance: blue, less than 25 ohms; green 25100 ohms; yellow 1001000 ohms; and red, greater than 1000 ohms.

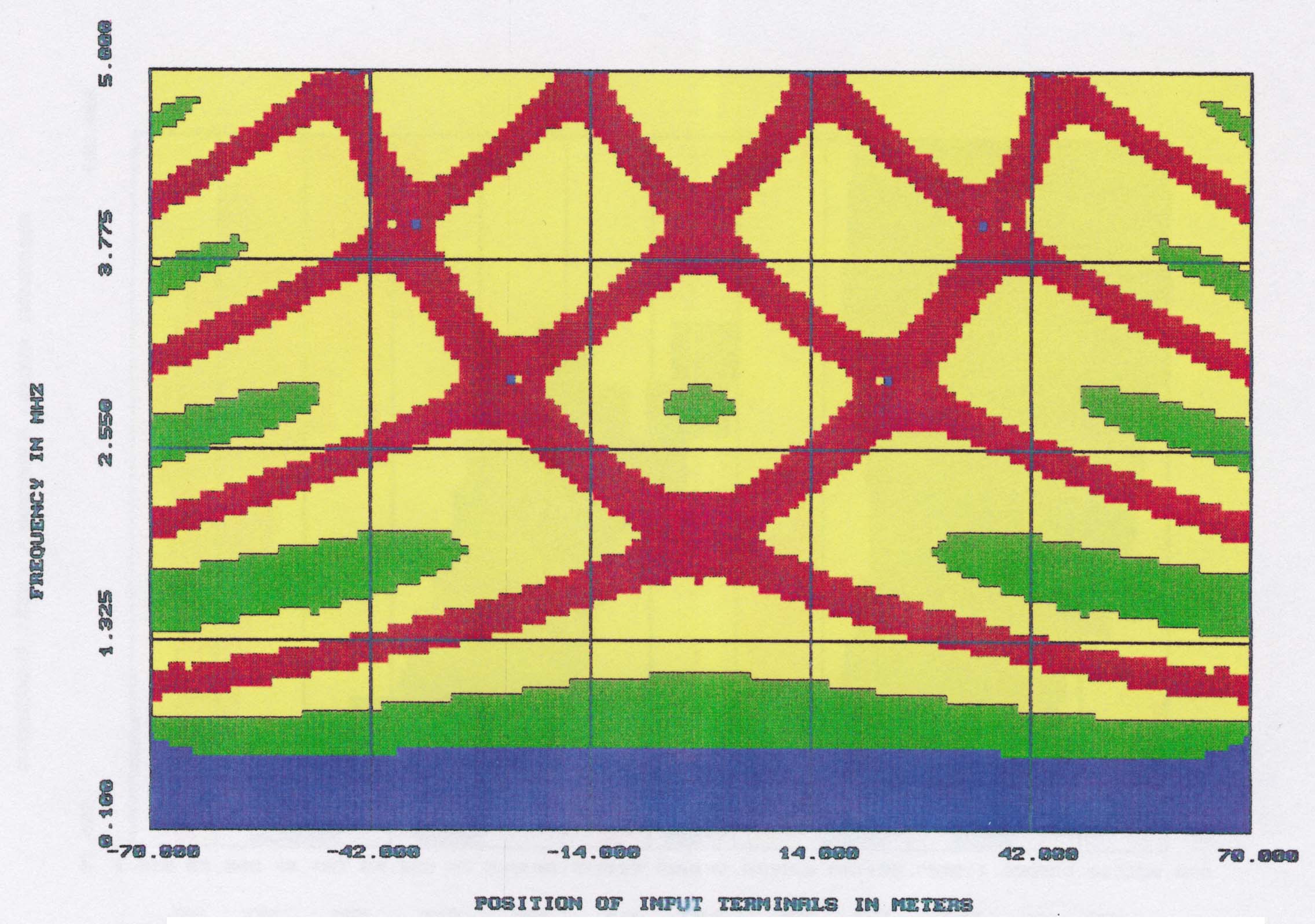

Input reactance of an asymmetric dipole, with radius 0.1 meter and total length 150 meters. Each color corresponds to a different range of reactance: blue, less than 250 ohms; green 250 to 0 ohms; yellow 0250 ohms; and red, greater than 250 ohms.
Custom research and development concerning dielectric waveguides: Computer generated plot of magnetic field lines in the TM12like mode of a solid dielectric waveguide, with rectangular cross section and no metal walls. The electromagnetic field is the solution of an original integral equation derived by Jeremy K. Raines.
